HK-HG 186S and V8 muffler heat shield
Rank: Veteran
Groups: Moderator, Registered, Veteran
Joined: 1/03/2005(UTC)
Posts: 14,717
Thanks: 1 times
Was thanked: 512 time(s) in 488 post(s)
|
I have two types here in front of me, one is basically flat and folded to suit, looks like original one in photos next to replicas online. The other has a fold at the ends where the screws go through, it folds back on itself and the screws go through two thicknesses of metal. Any ideas? |
_______________________________________________________
If we all had the same (good) taste, who would buy all the Fords? |
|
|
|
|
|
Rank: Member
Groups: Registered
Joined: 21/04/2017(UTC) Posts: 293 ![Australia]( "Australia") Location: Tolmie Thanks: 2 times
Was thanked: 24 time(s) in 24 post(s)
|
Just went and had a look at mine and they both are single layer at edges and have two curved indentations to hold the shape of the middle section. Hope that helps.
|
|
|
|
|
|
Rank: Veteran
Groups: Moderator, Registered, Veteran
Joined: 1/03/2005(UTC)
Posts: 14,717
Thanks: 1 times
Was thanked: 512 time(s) in 488 post(s)
|
Maybe it is the really early HK that differ? |
_______________________________________________________
If we all had the same (good) taste, who would buy all the Fords? |
|
|
|
|
|
Rank: Member
Groups: Registered
Joined: 21/04/2017(UTC) Posts: 293 ![Australia]( "Australia") Location: Tolmie Thanks: 2 times
Was thanked: 24 time(s) in 24 post(s)
|
Originally Posted by: HK1837  Maybe it is the really early HK that differ? Which way? I've only ever seen single layer. why press a panel to shield heat that doesn't get any stress and then fold over the edges. Doesn't fit in with manufacturing of the day.
|
|
|
|
|
|
Rank: Veteran
Groups: Moderator, Registered, Veteran
Joined: 1/03/2005(UTC)
Posts: 14,717
Thanks: 1 times
Was thanked: 512 time(s) in 488 post(s)
|
Don’t know but this is off an original car, we just can’t remember which one. Can’t add photos here to show it |
_______________________________________________________
If we all had the same (good) taste, who would buy all the Fords? |
|
|
|
|
|
Rank: Member
Groups: Registered
Joined: 25/10/2010(UTC)
Posts: 58
Thanks: 3 times
Was thanked: 3 time(s) in 3 post(s)
|
|
|
|
|
|
|
Rank: Member
Groups: Registered
Joined: 21/04/2017(UTC) Posts: 293 ![Australia]( "Australia") Location: Tolmie Thanks: 2 times
Was thanked: 24 time(s) in 24 post(s)
|
Deano's are the same as mine.
|
|
|
|
|
|
Rank: Veteran
Groups: Moderator, Registered, Veteran
Joined: 1/03/2005(UTC)
Posts: 14,717
Thanks: 1 times
Was thanked: 512 time(s) in 488 post(s)
|
They are the same as one of the ones I have here. Other one had a 180deg fold on the edges where the screws go through, it folds back on itself and the screws go through two thicknesses of the metal. |
_______________________________________________________
If we all had the same (good) taste, who would buy all the Fords? |
|
|
|
|
|
Rank: Member
Groups: Registered
Joined: 29/07/2006(UTC)
Posts: 766
Location: in the shed
Thanks: 8 times
Was thanked: 14 time(s) in 13 post(s)
|

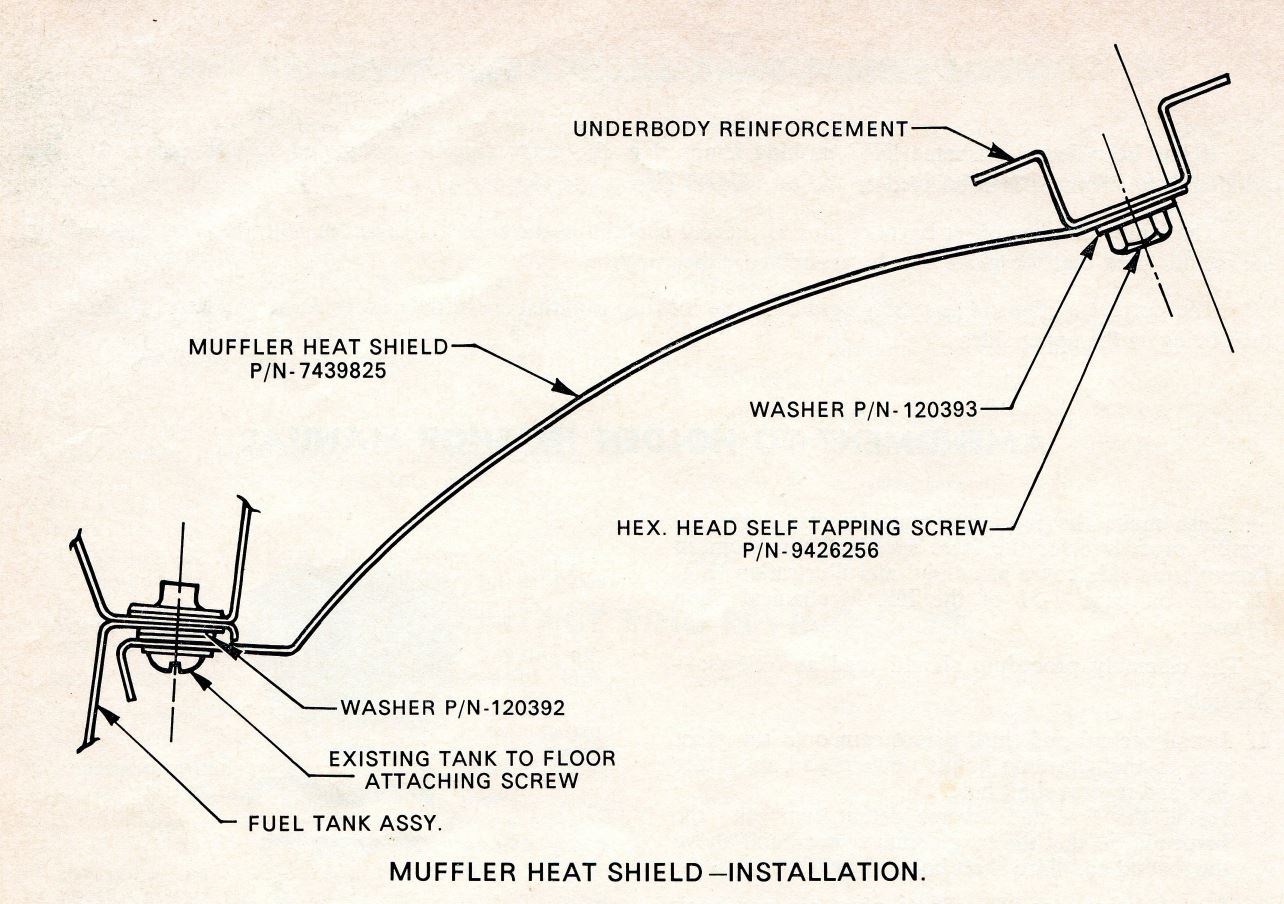

Originally Posted by: HK1837 They are the same as one of the ones I have here. Other one had a 180deg fold on the edges where the screws go through, it folds back on itself and the screws go through two thicknesses of the metal. The heat shields were introduced as a NASCO option in service bulletin H.289 in May 1968 so I guess earlier HK's didnt have them at all. According to the service bulletin the heat shields were for V8 (L30) and 186S (L66) cars. I dont know if every car got one on the production line after April/May ish. The flatter looking shields with only three bends used two washers as spacers under each of the three fuel tank screws. (6 washers for 3 screws) and I guess they were an earlier design? The other shields have six bends and fit neatly into the lip of the fuel tank, no need for spacer washers and I guess they're a later design? My December Dandenong car has this neater type and I'm sure its the original for this car.   Wayne
|
|
|
|
|
|
Rank: Member
Groups: Registered
Joined: 29/07/2006(UTC)
Posts: 766
Location: in the shed
Thanks: 8 times
Was thanked: 14 time(s) in 13 post(s)
|

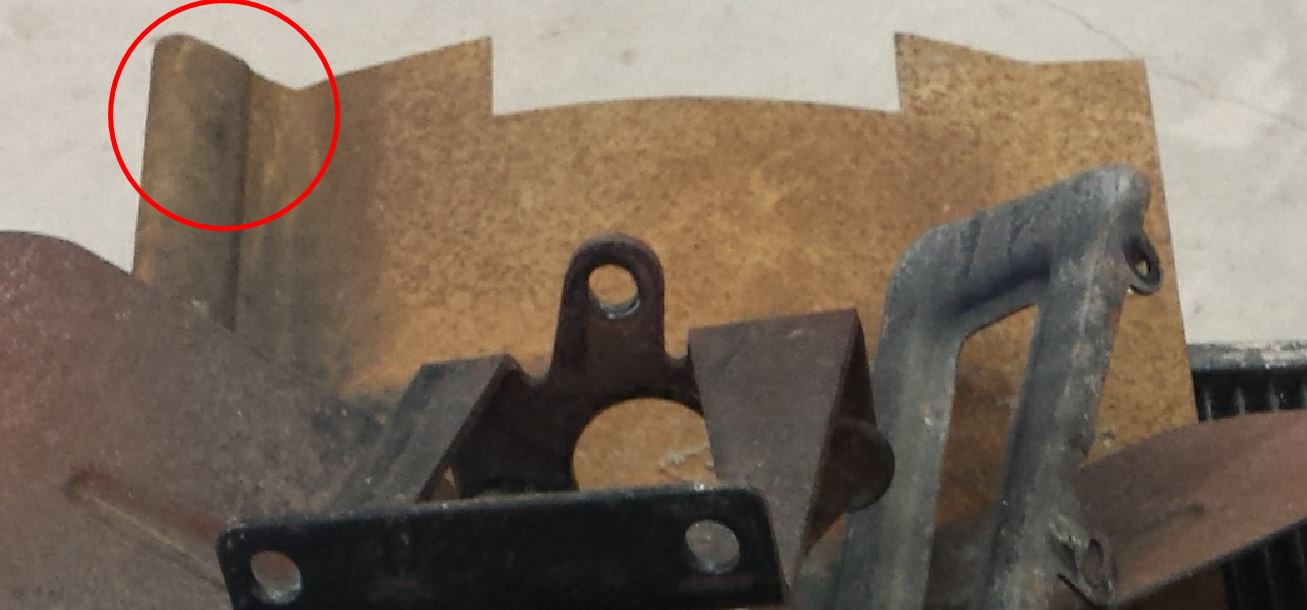

Mine looks like this, one layer of steel but more bends. Maybe you've got plan-B and mine is plan-C, they were probably trying to avoid using spacer washers in production.  Edited by user Tuesday, 10 September 2019 10:44:46 PM(UTC)
| Reason: Not specified
|
|
|
|
|
|
Rank: Veteran
Groups: Moderator, Registered, Veteran
Joined: 1/03/2005(UTC)
Posts: 14,717
Thanks: 1 times
Was thanked: 512 time(s) in 488 post(s)
|
I think you are right. The one that is flat at the tank will be the early one and the one like yours will be later. Looks like the early one uses 3/4” long screws at the tank side whereas yours will use the original 1/2” long screws I guess. The one I have might be a copy where the fold simply means no need for spacer washers, easier than the later type fold to make? |
